简介

相比于静态吸附法，动态穿透法有很多优势， 比如可研究多组分流动的气体或者蒸汽的竞争性吸附。和质谱联用，测量穿透柱的出口浓度进而评估材料的吸附量或分离性能。质谱可以非常有效地区分大部分气体或蒸汽， 如有相同m/e的异构化合物，可联用FTIR进一步分析复杂的气体组分。

在这篇应用笔记里，我们采用穿透曲线分析仪BTA上测试了zeolite 13x 在单组份和双组分蒸汽氛围下的吸附行为。使用质谱仪独立分析了水和乙醇的蒸汽流，质量分别为 18 和 46。这些测量是在 50 °C、氮气和氦气等摩尔载气流速下进行的。

The breakthrough system generates vapor streams by flowing an inert gas through a bubbler. Bubblers have been shown to be very efficient at generating saturated vapor streams at low flowrates. All components of the breakthrough system are housed within a hotbox, this prevent condensation of vapor streams and allows for a constant temperature throughout the analysis. Water and ethanol at 50 °C in an inert carrier gas will generate a saturated stream at the following vapor pressures: water 0.124 bar and ethanol 0.292 bar.

实验步骤

Three vapor adsorption experiments were collected on zeolite 13X using water, ethanol, and a mixture of water and ethanol. Nitrogen and helium were used as the carrier gas and tracer gas for adsorption measurements as both are inert. Prior to analysis, the sample was activated at 100 °C for one hour and 200 °C for an additional 12 hours under nitrogen gas flow to remove any adsorbed species.

First, water vapor analysis was conducted at 50% RH using a split stream of dry nitrogen and humidified helium. The experiment was conducted at a pressure of 1.0 bar and a temperature of 50 °C. A total flowrate of 24 sccm was used for this experiment, 12 sccm was humidified helium and 12 sccm was dry nitrogen. The vapor pressure of water at this concentration is 0.124 bar.

Next, ethanol vapor analysis was conducted once again using a split stream of dry nitrogen and humidified helium. The experiment was conducted at a pressure of 1.0 bar and a temperature of 50 °C. A total flowrate of 24 sccm was used consisting of 12 sccm ethanol saturated helium and 12 sccm dry nitrogen. The vapor pressure of ethanol at this concentration is 0.292 bar.

A final experiment was conducting using mixed streams of ethanol and water vapor. The experiment was conducted at a pressure of 1.0 bar and a temperature of 50 °C. A total flowrate of 24 sccm was used consisting of 12 sccm water saturated nitrogen and 12 sccm ethanol saturated helium. The vapor pressures of water and ethanol are the same as those listed previously.

实验结果

Water

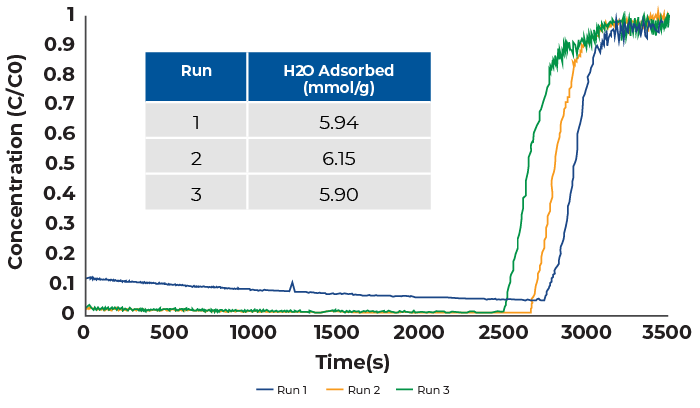

Water vapor breakthrough measurements were conducted by mixing a dry nitrogen stream with a water saturated helium stream in a one-to-one ratio. The total flowrate was 24 sccm which was comprised of 12 sccm nitrogen and 12 sccm helium. The breakthrough results are displayed in Figure 1.

The water breakthrough curve shows that there is substantial adsorption of water by zeolite 13X even though the concentration is low (vapor pressure is 0.124 bar). Breakthrough occurred roughly 45 minutes into the experiment for all measurements and the resulting breakthrough curves were sharp such that mass transfer limitations are minimal. Between each run the zeolite 13X sample was reactivated overnight at 200 °C. This step is required as water adsorbs strongly in zeolite 13X and was required for complete reactivation. Additionally, water is difficult to remove from mass spectrometers, prior to each measurement the mass spectrometer was baked out for several hours to drive water from the atmosphere out of the system.

Ethanol

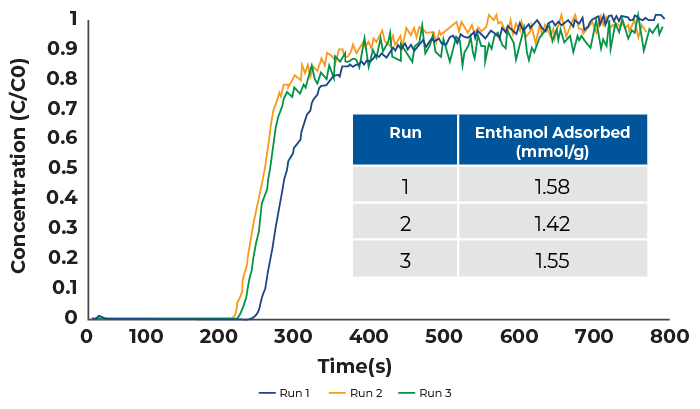

Ethanol vapor breakthrough experiments were conducted by mixing a dry nitrogen stream with an ethanol saturated helium stream in a ratio of one to one. The total flowrate was 24 sccm which was comprised of 12 sccm nitrogen and 12 sccm helium. The breakthrough results are displayed in Figure 2.

Subsequent ethanol breakthrough measurements were first collected without heated reactivation overnight. A pure stream of nitrogen was passed through the column for two hours, however a substantial drop-off in ethanol adsorption capacity was. Second pass capacity dropped to 0.49 mmol/g. For the tests show here, zeolite 13X was reactivated overnight at 200 °C for all measurements.

The ethanol breakthrough curves show that there is minimal drop-off in adsorption capacity between runs. During run one, 1.58 mmol/g ethanol was adsorbed compared to 1.42 mmol/g in run 2 and 1.55 mmol/g in run 3. All breakthrough curves are steep signifying that mass transfer limitations were not a concern during these analyses.

乙醇-水

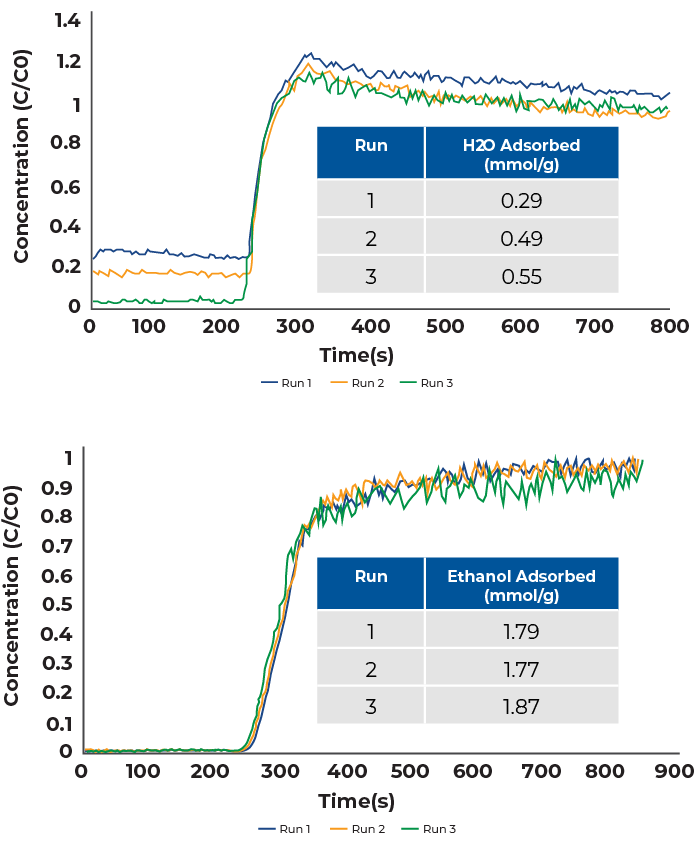

Ethanol-Water breakthrough experiments were conducted by mixing a water saturated helium stream with an ethanol saturated nitrogen stream. The total flowrate was 24 sccm which consisted of 12 sccm nitrogen and 12 sccm helium. While the flowrates of nitrogen and helium were the same, the flowrates of ethanol and water differ as water has a lower vapor pressure than ethanol at 50 °C. The breakthrough results are shown in Figure 3.

Between each measurement, samples were reactivated overnight at 200 °C to remove all adsorbed ethanol and water. Prior to adsorption measurements, the mass spectrometer was also baked-out to remove and water and ethanol remaining in the mass spectrometer.

The water and ethanol breakthrough curves display typical competitive adsorption behavior. Additionally, water and ethanol are partially miscible such that there is likely a synergistic effect in their adsorption behavior. Water vapor breaks through slightly before ethanol and displays slight roll-up before reaching saturation. The ethanol breakthrough curves look similar to those that were shown in Figure 2, however the adsorption capacity has been slightly increased. As mentioned before, this is likely due to a synergistic effect of combined water-ethanol adsorption. The water vapor adsorption capacity has been significantly suppressed compared to previous measurements and is further decreased due to preferential adsorption of ethanol. The preferential adsorption of ethanol is partially due to its increased concentration due to having a higher vapor pressure at 50 °C.

实验结论

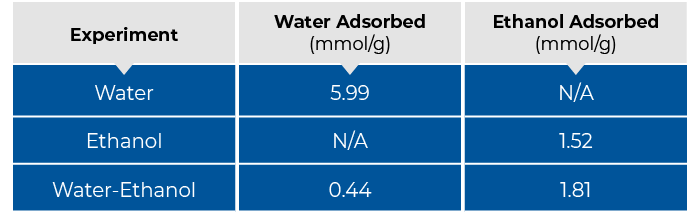

水蒸汽和乙醇蒸汽的单组份和双组分穿透曲线吸附分析说明，在本实验条件下，水和乙醇蒸汽在Zeolites 13x 上存在竞争性吸附。表下中总结了Zeolites 13x水蒸汽和乙醇蒸汽在单组份和双组分实验中的吸附量， 数据说明，在双组分条件下，Zeolites 13x 有更强的乙醇蒸汽吸附能力。在整个实验中都没有观察到压降和传质问题。
